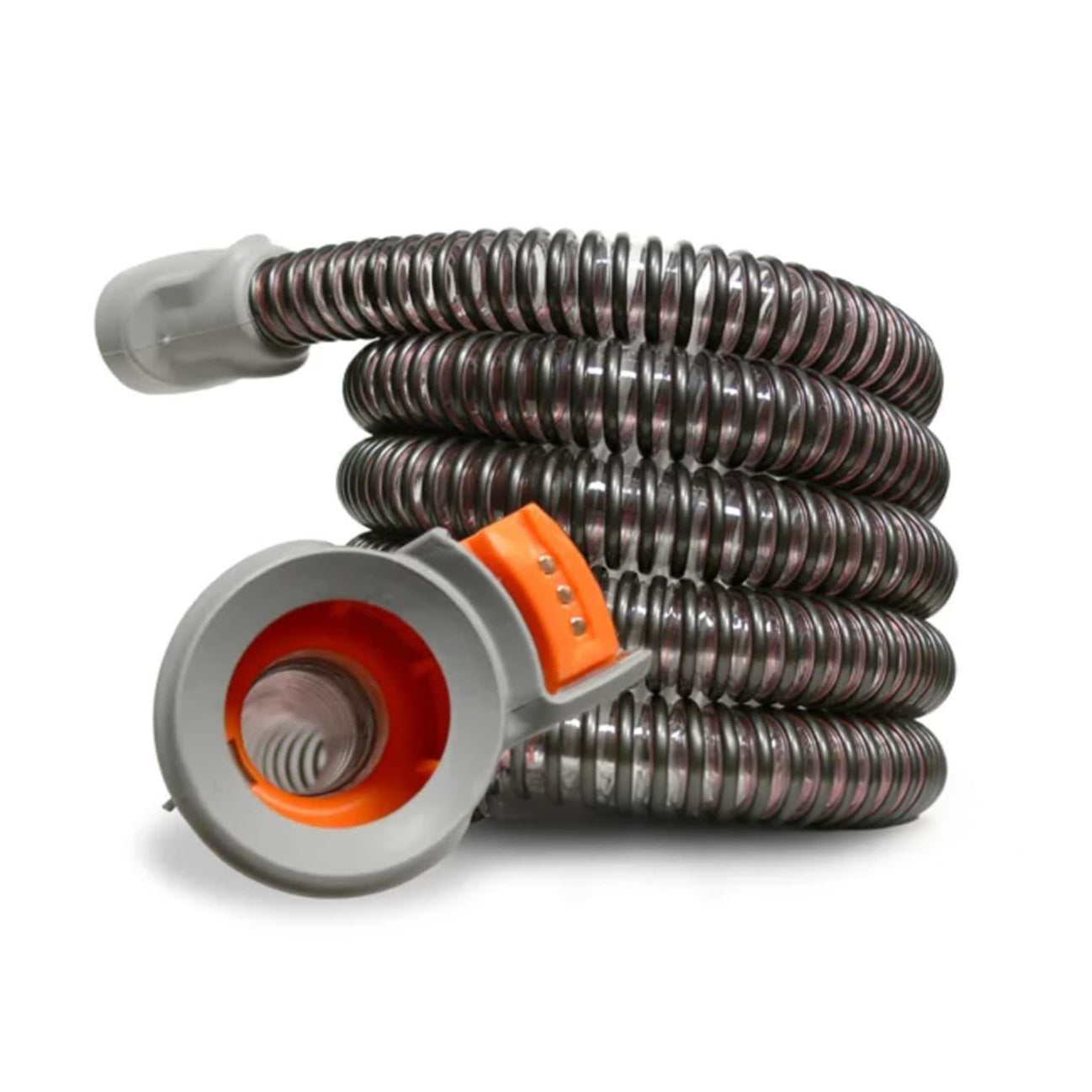

Keep the humidity inside your CPAP hose at an optimal level from machine to mask with the latex-free
ClimateLine Max Oxy Air Tubing with Supplemental Oxygen Port for S9 Machines .
Learn More About the ClimateLine Max Oxy Air Tubing with Supplemental Oxygen Port for S9 Machines
- Various Features Help Measure Oxygen, Technology, and Humidity
- Only Compatible With ResMed S9 Series Machines with an H5i heated humidifier
Find all compatible parts listed here on the ResMed S9 Parts page.
Various Features Help Measure Oxygen, Technology, and Humidity

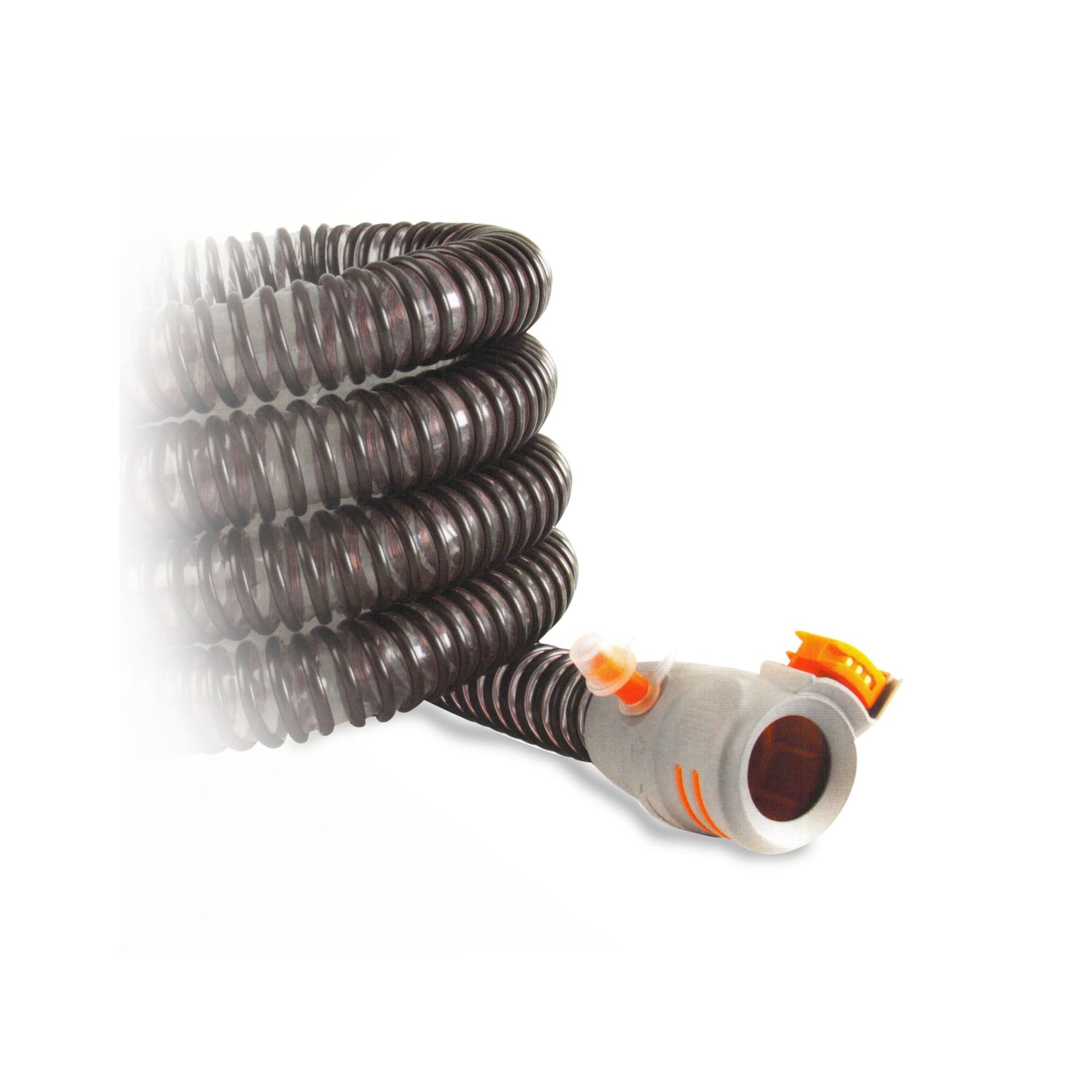

This accessory is outfitted with a port to add oxygen to the air stream and a sensor to measure the internal temperature and humidity, plus an exterior thin copper wire works to warm the temperature in the tube itself.
General Tips Section
Maximum Pressure 30 cmH3O ClimateLine Tubing Information and Use
- Tubing Options ResMed's S9 Line of machines has a number of tubing options. The SlimLine 15mm tube is a non-heated tube in a thin, flexible style. The machine can also be used with an OPTIONAL heated ClimateLine Tubing which integrates with the machine and OPTIONAL H5i Heated Humidifier to provide increased humidification and reduced chances of rainout. The ClimateLine is available in two diameters. The SlimLine 15mm ClimateLine Tubing and a standard diameter 19mm ClimateLine Max Tubing. Additionally a standard diameter, non-heated tube may be used.
- ClimateLine Tubing Lengths A traditional CPAP tube is 72 inches long. The optional 15mm ClimateLine Tubing length is 78 inches. The optional 19mm ClimateLine MAX Tubing length is 75 inches.
- Cleaning Instructions for the ClimateLine Heated Tube
- Daily
- Disconnect the tubing from the machine and mask.
- Hang in air dry.
- Do not hang the tubing in direct sunlight.
- Weekly
- Disconnect the tubing from the machine and mask.
- Wash the tubing with warm water and a mild detergent.
- Rinse thoroughly with clean running water.
- Hang and allow to air dry out of direct sunlight.
- The tubing can be fully immersed in water but MUST BE completely dry before use.
